Rifle Barrels

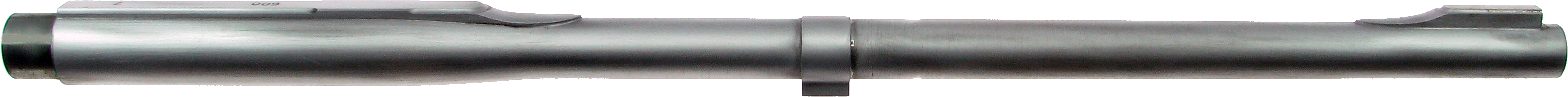

Africa Model
Profile n.1
Round rod with 3/4 long rib, portacinta ring and viewfinder ramp obtained from the full of the barrel.
Ideal for magnum calibers (eg 500 Jeffery).
Indicative measurements: diameter at the mouth 24 mm.

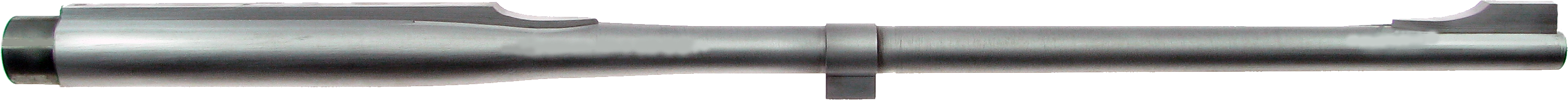

Safari Model
Profile n.2
Round rod with 3/4 long rib, portacinta ring and viewfinder ramp obtained from the full of the barrel.
The optical attack is also obtained from the full of the barrel.
Ideal for magnum gauges (eg 416 Rigby).
Indicative measurements: diameter at the mouth 19mm.

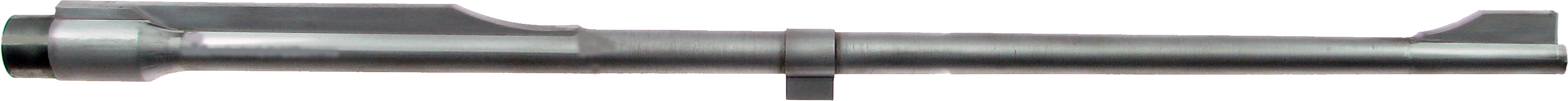

Holland Model
Profile n.3
Round rod with 3/4 long rib, portacinta ring and viewfinder ramp obtained from the full of the barrel the optical attack is also obtained from the full of the barrel.
Ideal for magnum and normal calibres (eg 300 H-H Mag.)
Indicative measurements: diameter at the mouth 16mm.

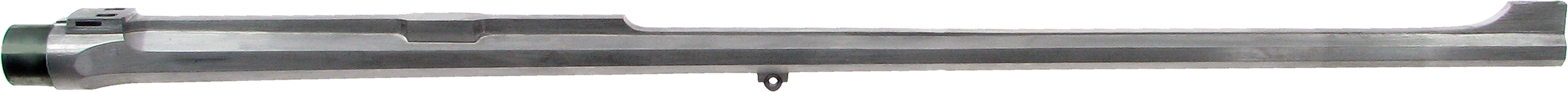

Classic Model
Profile n.4
Octagonal cane with long rib 3/4, portacinta and viewfinder ramp obtained from the full of the barrel.
The optical attack is also obtained from the full of the barrel.
Ideal for magnum and normal calibres (eg 8×68 S).
Indicative measurements: diameter at the mouth 15mm.

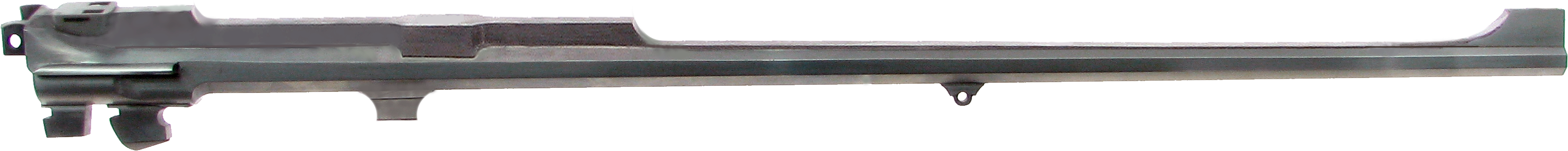

Jaguar Model
Tilting Profile
Octagonal Demiblock cane with 3/4 long rib, portacinta and viewfinder ramp obtained from the full of the barrel.
The optical attachment and the crampon of the rod are also made from the full of the barrel.
Ideal for magnum and normal calibres (eg 6,5×65 R).
Indicative measurements: diameter at the mouth 15mm.

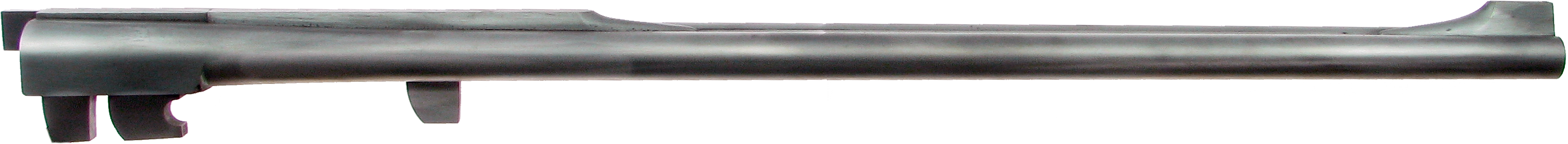

Royal Model
Express Profile
Demiblock cane.
Optical attachment can be obtained from the full rib.
